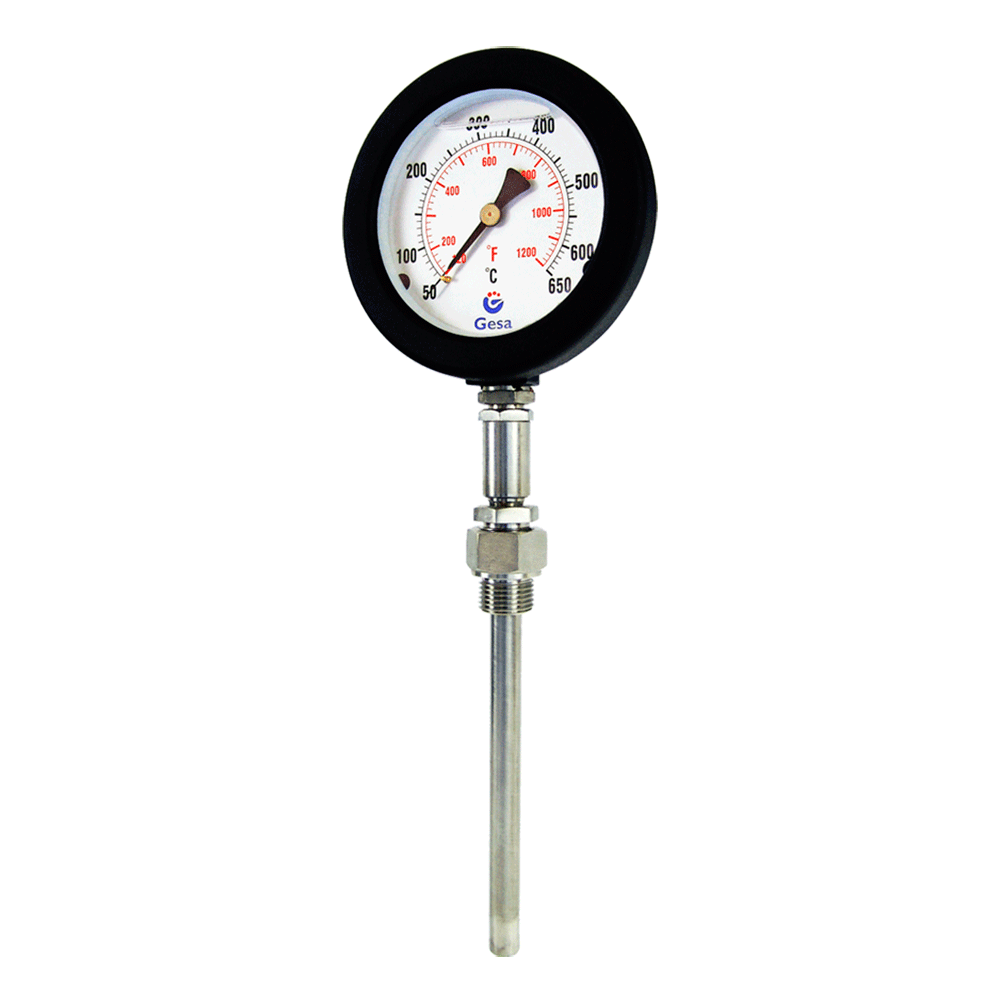

Exhaust pyrometers +50+650ºC for high temperatures

Description | Technical details | Specifications

Designed to check the temperature of gas exhaust systems.

PreviewAttachmentSize
Exhaust pyrometers +50+650ºCfor high temperatures D23 261.19 KB

Case diameter: Ø100mm
Case material: Steel painted black
Anti-vibration system: Rigid
Anti-vibration liquid: Silicon oil
Display: Glass
Closure of the case: Screwed
Temperature range: +50+650ºC
Scale: Celsius/fahrenheit
Class: 1.6
Stem diameter: Ø12mm
Moving parts material: Copper alloy
Sensor: Bimetallic stripe
Threaded connection material: Stainless steel AISI 304
IP protection: IP65
Brand: Gesa

Ref.:D23
In stock

Inmediate delivery
0,00€
Expand options
Collapse options
Mounting: Radial connection
Stem length (mm): 150
Connection of the stem to the facility: Sliding connection
Threaded connection: ½" BSP
Calibration certificate: I do not need to calibrate this device

El certificado de calibración es un documento adjunto al instrumento que especifica el error y desviación en determnados puntos, es requerido en diversas áreas.

Calibration traceable to ENAC patterns: 3 point temperature calibration

El certificado de calibración es un documento que acredita el correcto funcionamiento del instrumento de cara a inspecciones y reglamentos. Para ello se contrastan las lecturas del instrumento

Points of the scale to calibrate:
Increment of 1 unit:
Language of certificate: Spanish
Calibration remarks:
Increment of 1 unit:
Technical documentation:
PreviewAttachmentSize
Exhaust pyrometers +50+650ºCfor high temperatures D23 261.19 KB
